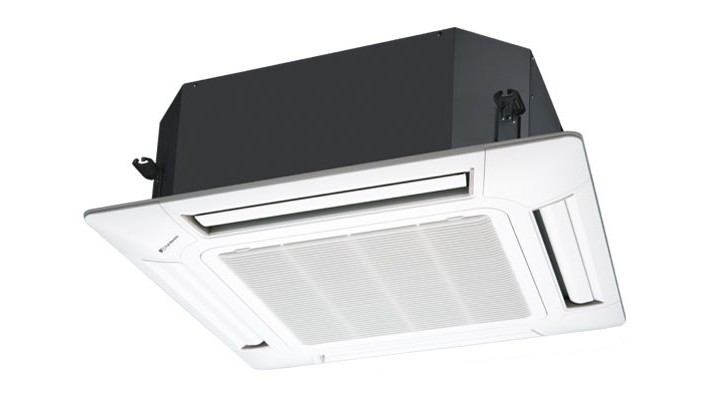

Three-phase cassette-type inverter air conditioner Fuji Electric RCG36LRLA
€3,500.00
Basic specifications
10.00 kW
11.20 kW
33 dB
A++
- Cooling capacity: 10.0 kW
- Heating capacity: 11.2 kW
- SEER Efficiency: 6.50;
- SCOP Efficiency: 4.30;
- Efficiency Class (Cooling): А++
- Efficiency Class (Heating): А+
- Cooling PDesign (-10°C): 10.0 kW
- Heating PDesign (-10°C): 10.0 kW
- Noise in Cooling mode: 44 / 39 / 36 / 33 dB(A)
- Noise in Heating mode: 44 / 39 / 36 / 33 dB(A)
Functions and extras
High efficiency turbo fan with 3-dimensional blade
Previous turbo fan: Air passing through the heat exchanger was
uneven and the air would only flow close to the ceiling.
Fuji Electric: New turbo fan: High efficiency airflow distribution has been achieved
by the introduction of a 3 dimensional blade which increases the air
passing over the heat exchanger.
Improvement of the airflow distribution
New louvre: The louvre design distributes air leaving a
space between the chassis and the ceiling allowing far
and wide airflow distribution.
Adjustment of hanger position is possible after installation
Low ambient operation
| Series | LRL |
| Indoor Unit | RCG36LRLA |

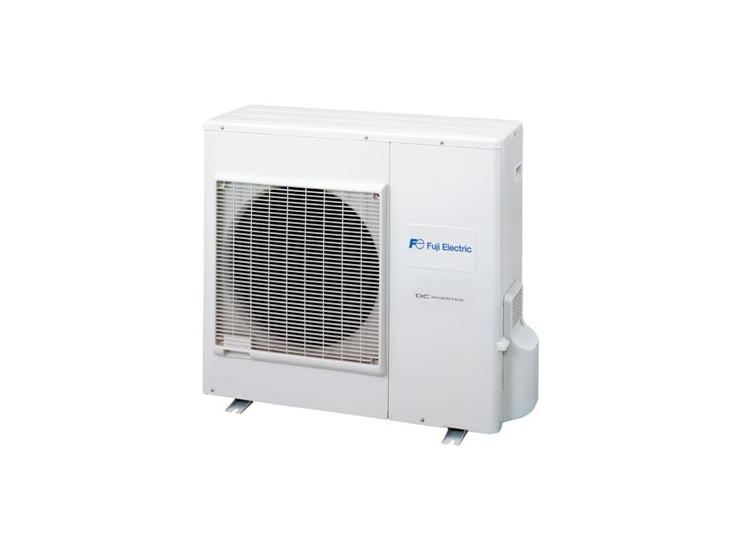

| Outdoor Unit | ROG36LATT |
| Capacity (BTU) | 36 000 BTU |
| For residential rooms | from 40 to 90 m² |
| For commercial premises | from 35 to 60 m² |
| Power Supply (V/ø/Hz) | 400 / 3 / 50 |
| Cooling Capacity (kW) | 10.0 (4.7 - 11.4) |
| Heating Capacity (kW) | 11.2 (5.0 - 14.0) |
| Input Power Cooling / Heating (kW) | 2.44 / 2.56 |
| PDesign Cooling / Heating (-10°C) (kW) | 10.0 / 10.0 |
| EER (Energy Efficiency Ratio) | 4.10 |
| COP (Coefficient Of Performance) | 4.38 |
| SEER (Seasonal Energy Efficency Ratio) | 6.50 |
| SCOP (Seasonal Coefficent Of Performance) | 4.30 |
| Efficiency Class (Cooling) | A++ |
| Efficiency Class (Heating) | A+ |
| Running Current Cooling / Heating (A) | 7.9 / 7.9 |
| Moisture Removal (l/h) | 3.0 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 44 / 39 / 36 / 33 |
| Sound Pressure Indoor Unit - Heating dB(A) | 44 / 39 / 36 / 33 |
| Sound Pressure Outdoor Unit - cooling/heating dB(A) | 51 / 53 |
| Sound Power Indoor Unit - cooling/heating dB(A) | 58 / 58 |
| Sound Power Outdoor Unit - cooling/heating dB(A) | 67 / 69 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 1800 / 6200 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 1800 / 6200 |
| Dimensions - Indoor Unit WxHxD (mm) | 840 x 288 x 840 |
| Dimensions - Outdoor Unit WxHxD (mm) | 900 x 1290 x 330 |
| Weight - Indoor Unit (kg) | 26 |
| Weight - Outdoor Unit (kg) | 104 |
| Piping Connections - liquid / gas (mm) | 9.52 / 15.88 |
| Drain Pipe Diameter (mm) | 25 / 32 |
| Maximum Pipe Lenght (m) | 75 |
| Maximum Height Difference (m) | 30 |
| Operation Range - Cooling (°C) | -15 ~ 46 |
| Operation Range - Heating (°C) | -15 ~ 24 |
| Refrigerant | R410A |
