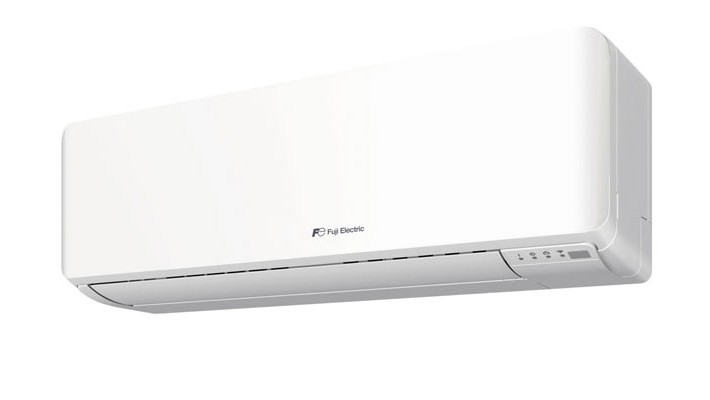

Inverter wall-type air conditioner Fuji Electric RSG09KMCEN
Basic specifications
2.50 kW
3.20 kW
20 dB
A++
- Cooling capacity: 2.5 kW
- Heating capacity: 3.2 kW
- SEER Efficiency: 6.50;
- SCOP Efficiency: 4.60;
- Efficiency Class (Cooling): А++
- Efficiency Class (Heating): А++
- Cooling PDesign (-10°C): 2.5 kW
- Heating PDesign (-10°C): 2.5 kW
- Noise in Cooling mode: 40 / 36 / 30 / 20 dB(A)
- Noise in Heating mode: 42 / 38 / 33 / 22 dB(A)
Functions and extras
High quality heat exchanger Nordic
The КМСEN Series is designed to work in conditions of the coldest scandinavian climate. The built-in heater, located into the outdoor unit, is ment to protect the outdoor unit from freezing. The air-conditioning systems of this range use durable components designed to prevent freezing and provide comfortable heating even when the outside temperatures are low down to -25°C. All models from this series retain their nominal heating power up to an external temperature of -15°C.
High energy saving
The ultra-high seasonal efficiency is achieved thanks to the high-density heat exchanger and the new R32 refrigerant gas.
Comfortable airflow & Quiet operation

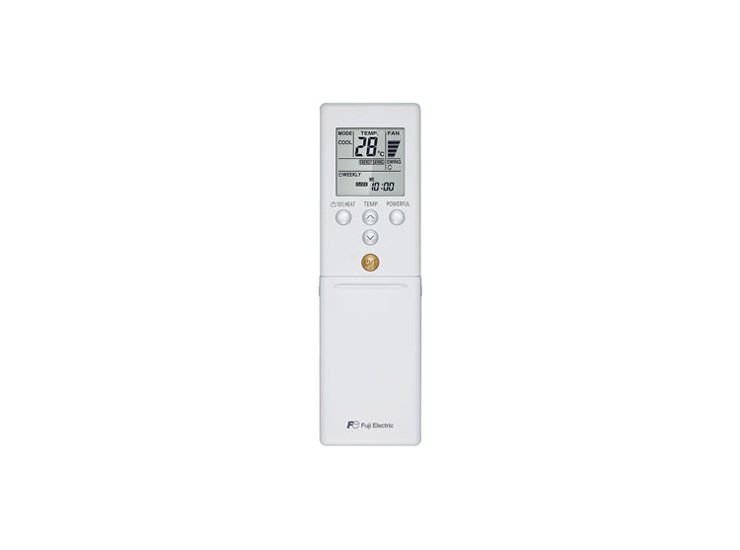

Weekly timer with easy mode setting from the remote control. 10°C heating function that keeps the room temperature constant for greater comfort in the home.
Smart device control
WLАN аdарtеr іѕ іnсludеd аѕѕtаndаrd еquірmеnt. Ву іnѕtаllіng thе АІRЅТАGЕ mоbіlе арр оn уоur ѕmаrt dеvісе, уоu саn сhесk аnd соntrоl thе ореrаtіng ѕtаtuѕ оf thе аіr соndіtіоnеr frоm аnуwhеrе іndооrѕ оr оutdооrѕ.
Refrigerant cycle monitor (option)
Wired Remote Controller (Touch Panel) will support to display some sensor values for maintenance and service support.
| Series | KM |
| Indoor Unit | RSG09KMCEN |

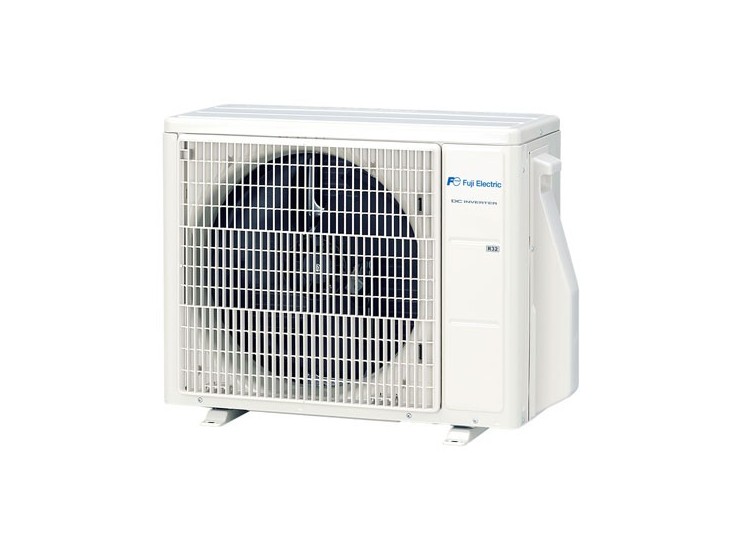

| Outdoor Unit | ROG09KMCEN |
| Capacity (BTU) | 9 000 BTU |
| Power Supply (V/ø/Hz) | 230 / 1 / 50 |
| Cooling Capacity (kW) | 2.5 (1.0 - 3.8) |
| Heating Capacity (kW) | 3.2 (0.9 - 5.7) |
| Input Power Cooling / Heating (kW) | 0.54 / 0.72 |
| PDesign Cooling / Heating (-10°C) (kW) | 2.5 / 2.5 |
| EER (Energy Efficiency Ratio) | 4.63 |
| COP (Coefficient Of Performance) | 4.44 |
| SEER (Seasonal Energy Efficency Ratio) | 6.50 |
| SCOP (Seasonal Coefficent Of Performance) | 4.60 |
| Efficiency Class (Cooling) | A++ |
| Efficiency Class (Heating) | A++ |
| Running Current Cooling / Heating (A) | 6.0 / 9.5 |
| Moisture Removal (l/h) | 1.3 |
| Sound Pressure Indoor Unit - Cooling dB(A) | 40 / 36 / 30 / 20 |
| Sound Pressure Indoor Unit - Heating dB(A) | 42 / 38 / 33 / 22 |
| Sound Pressure Outdoor Unit - cooling/heating dB(A) | 48 / 43 |
| Sound Power Indoor Unit - cooling/heating dB(A) | 55 / 57 |
| Sound Power Outdoor Unit - cooling/heating dB(A) | 59 / 56 |
| Air Flow Indoor / Outdoor Unit - Cooling (m3/h) | 670 / 1770 |
| Air Flow Indoor / Outdoor Unit - Heating (m3/h) | 750 / 1313 |
| Dimensions - Indoor Unit WxHxD (mm) | 834 x 270 x 215 |
| Dimensions - Outdoor Unit WxHxD (mm) | 799 x 542 x 290 |
| Weight - Indoor Unit (kg) | 10 |
| Weight - Outdoor Unit (kg) | 33 |
| Piping Connections - liquid / gas (mm) | 6.35 / 9.52 |
| Drain Pipe Diameter (mm) | 13.8 - 15.8 / 16.7 |
| Maximum Pipe Lenght (m) | 20 |
| Maximum Height Difference (m) | 15 |
| Operation Range - Cooling (°C) | -10 ~ 43 |
| Operation Range - Heating (°C) | -25 ~ 24 |
| Refrigerant | R32 |
| Warranty | 5 years |
